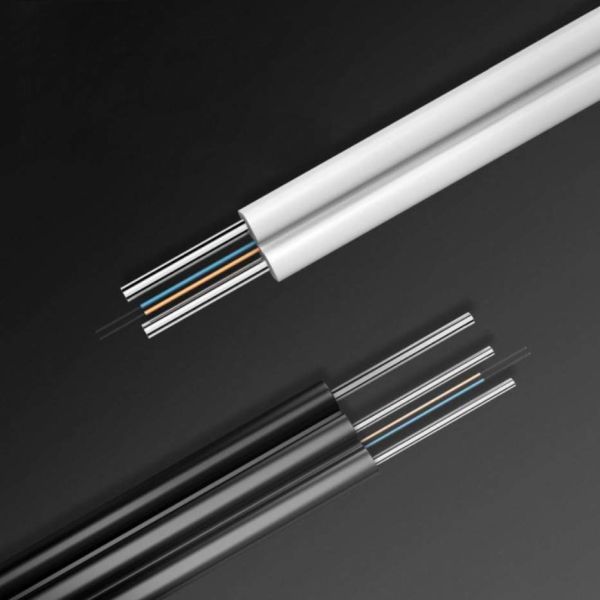

2 Cores FTTH fiber optic cable LSZH Outdoor with 3 Steel Wire FRP Strength Cables

Product Categories
Sichuan Aitong Wire & Cable, Inc.
Contact Now

2 Cores FTTH fiber optic cable LSZH Outdoor with 3 Steel Wire FRP Strength Cables

Brand Name : Aitong

Model Number : GJYXFCH-2B

Certification : ISO9001,ISO9001/CE/RoHS

Place of Origin : China

MOQ : 20KM

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, , Western Union

Supply Ability : 100KM/Day

Delivery Time : 5-8 Days

Packaging Details : Wooden Drum

Core Number : 2

Jacket : PVC Or LSZH

Diameter : 5.0*2.0

Color : black/white,Customized

Type : Butterfly Drop

Operating temperature : -40 to +70

Allowable tension : Short term 850 long term 2600

Contact Now

Telecom Outdoor Three Steel Wire FRP Strength Member Cables 2Cores FTTH Fiber Optic Cable

Description

As the name suggests, it is an optical fiber directly to the home. Specifically, FTTH refers to the installation of an optical network unit (ONU) at home users or corporate users, and is the type of optical access network application closest to the user in the optical access series except FTTD (Fiber to the Desktop). The standard name of this model is: metal strengthening member, low smoke halogen-free flame retardant polyolefin sheath, including 2 a2 type G657 fiber communication butterfly introduction cable.

Characteristics

  • Special flexural fiber (G652D, G652B, G657A)
  • Provide greater bandwidth, enhanced
  • To simplify the installation
  • And maintenance;
  • Can be matched with a variety of field connectors, can be field end.

Features

  1. Network transmission performance,
  2. Easily reach 100M per second, achieve broadband,
  3. TV and telephone networks in one;
  4. The optical cable is simple in structure, light in weight and practical.
  5. Unique groove design, easy to peel, easy to connect,
  6. Environmental protection. Low smoke, zero alogen and flame retardant sheath.

Cable Parametres

Model No. Fiber count (core) Cable diametre (mm) Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N) Bending Radius
Static/Dynamic
(mm)
GJYXCH 1 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
GJYXCH 4 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5

2 Cores FTTH fiber optic cable LSZH Outdoor with 3 Steel Wire FRP Strength Cables

We produce and test cable comply with following standard

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14

Application

2 Cores FTTH fiber optic cable LSZH Outdoor with 3 Steel Wire FRP Strength Cables

Why Choose Us?

2 Cores FTTH fiber optic cable LSZH Outdoor with 3 Steel Wire FRP Strength Cables

Production and Qulaity Test

2 Cores FTTH fiber optic cable LSZH Outdoor with 3 Steel Wire FRP Strength Cables
